System Type: Multi-Cell IP Cordless Telecommunications (IPCT) Base Station.
Scalability: Supports up to 20 Base Stations and up to 300 Handsets/Terminals in a single multi-cell deployment.
Coverage: Provides continuous coverage with seamless roaming and call handover between base stations.
Call Capacity: System supports up to 200 simultaneous calls (Multi-Cell mode).
Voice Quality: Features HD Voice and Noise Reduction for clear communication.
Power: Supports Power over Ethernet (PoE) for simplified installation.
Delivery policy
Tarifat e Transportit :
1- Tirana : Falas
2- Rrethet : 360 leke
3-Kosova : 6 Eur
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

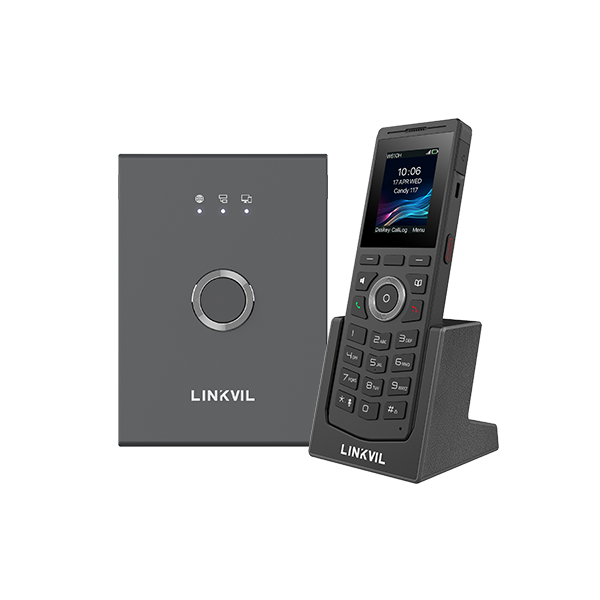

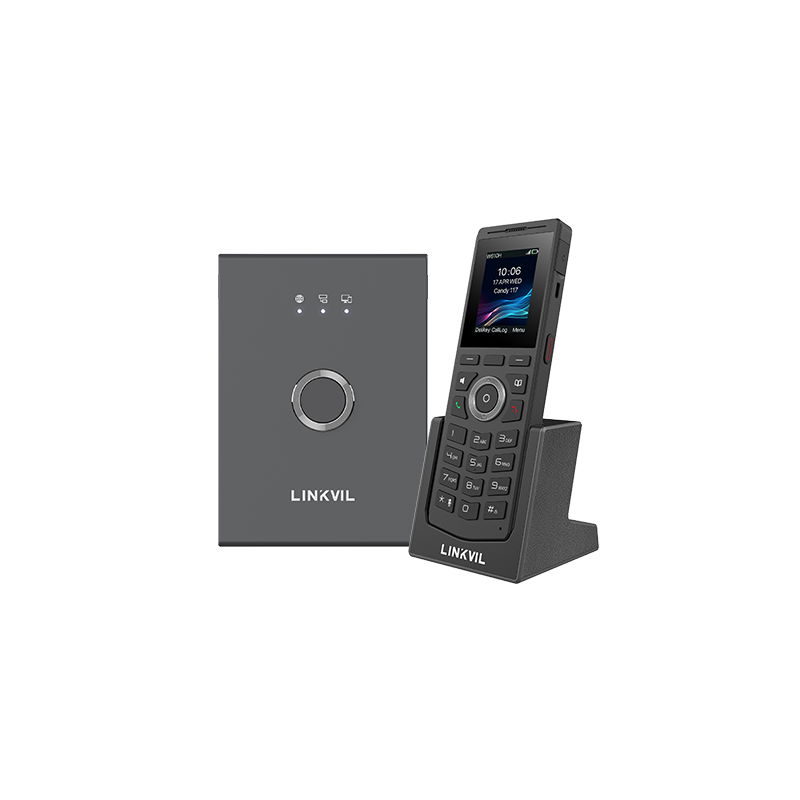

The Fanvil Multi-cell Wireless IPCT System is a sophisticated Voice over IP (VoIP) cordless solution engineered to provide expansive, enterprise-grade mobile communication coverage.

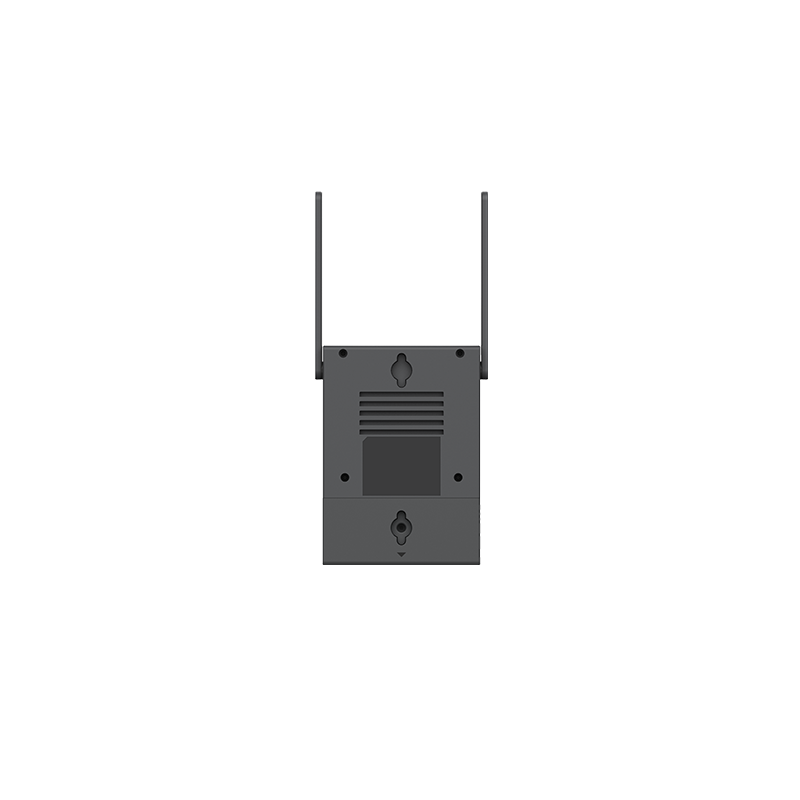

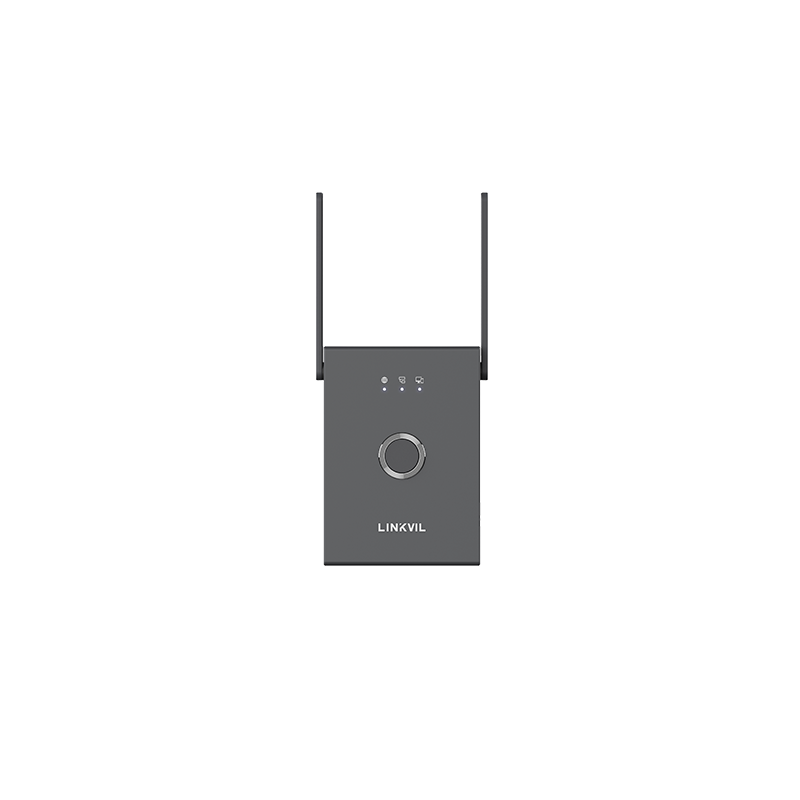

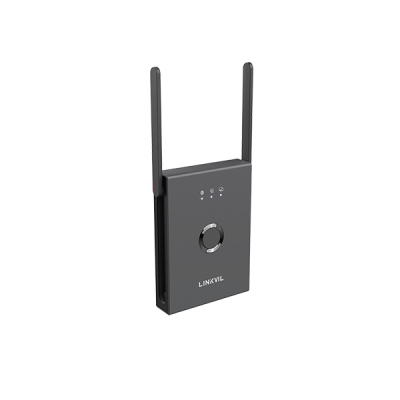

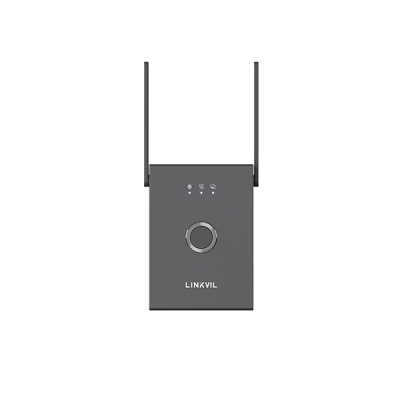

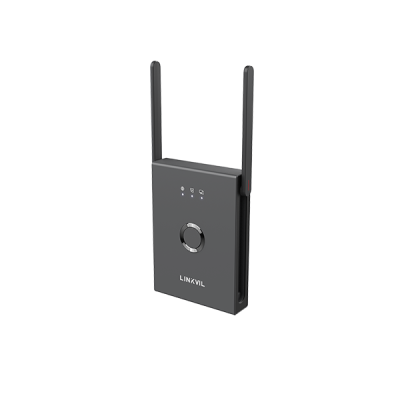

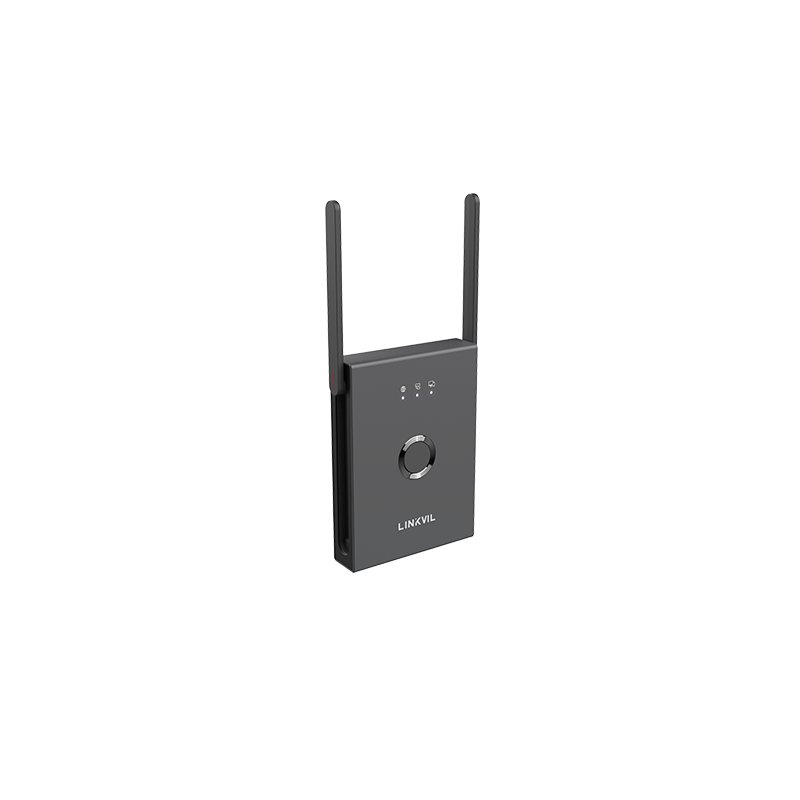

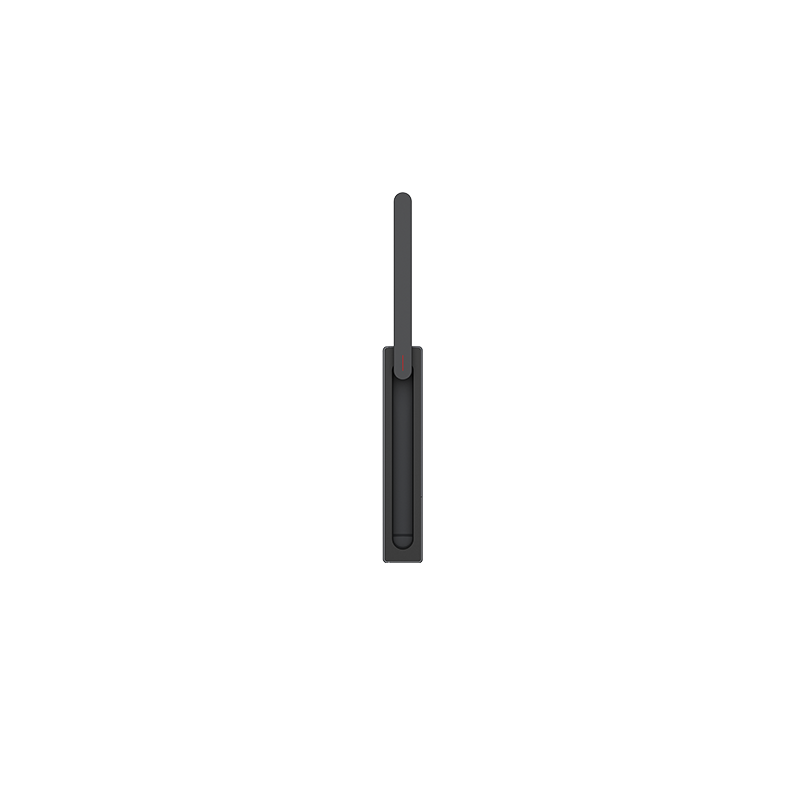

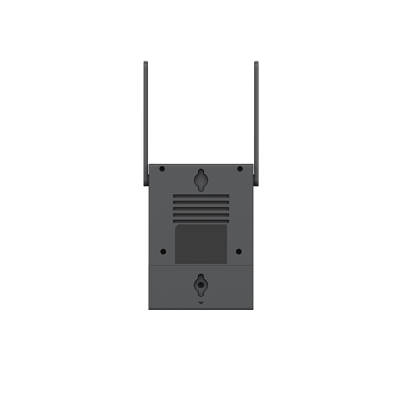

The core of the system is the W710H Base Station, which can be deployed in a network with multiple bases (up to 20 units) to create a large coverage area. This multi-cell setup ensures that users carrying the W610H Handset (or similar compatible handset) can move seamlessly between coverage zones without the call dropping (seamless roaming and handover).
Maximum Capacity (System): Up to 300 SIP accounts/internal extensions and up to 200 simultaneous calls across the entire network.
Base Station Capacity (Per W710H): Supports up to 30 Handsets and up to 16 parallel calls per base.
Coverage: Wireless signal coverage extends significantly, offering up to 100 meters indoors and up to 700 meters outdoors (range can vary by region/model).

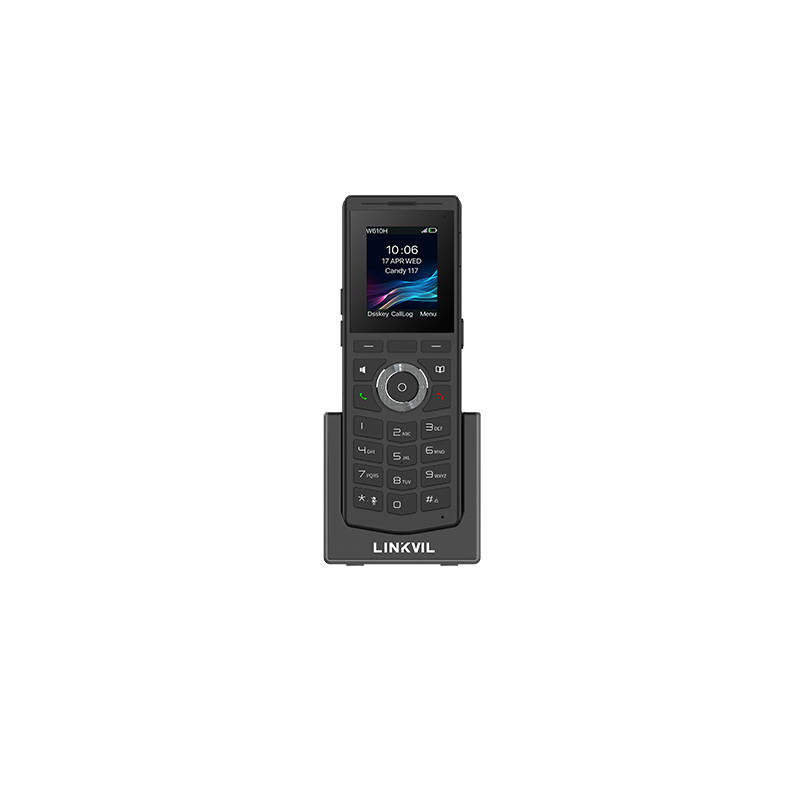

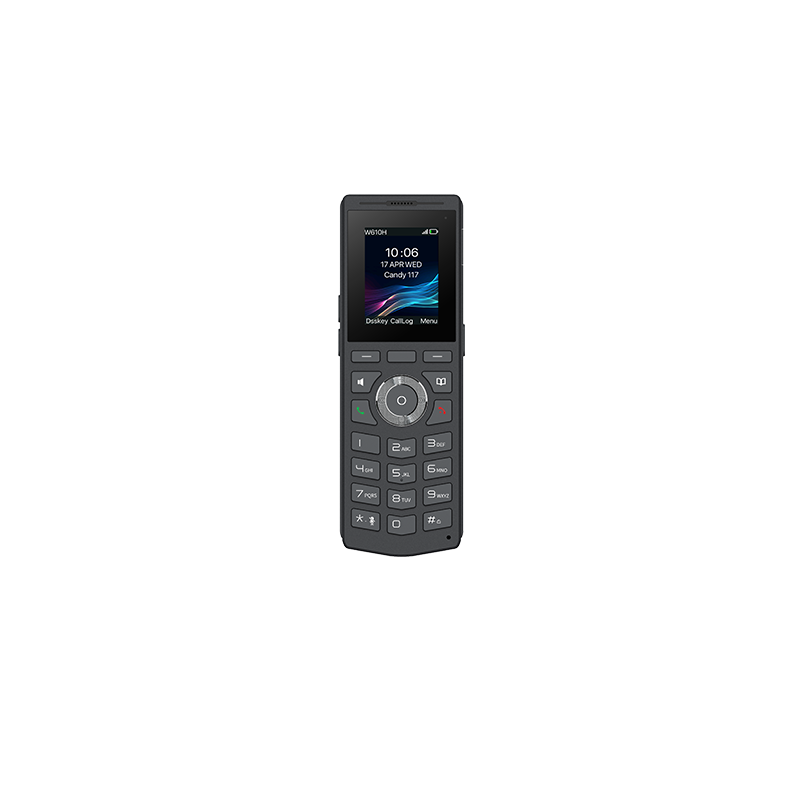

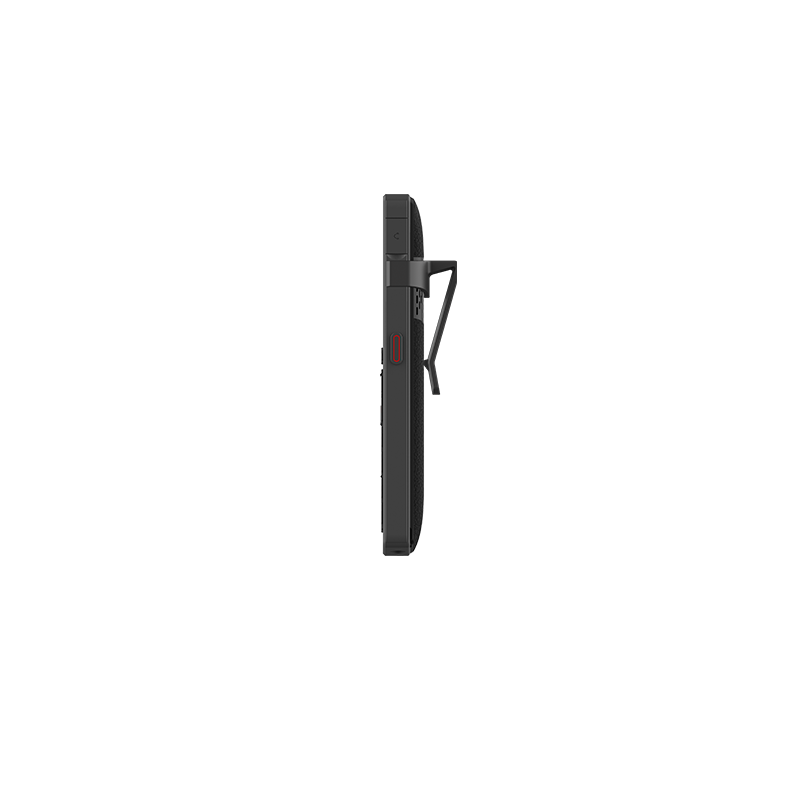

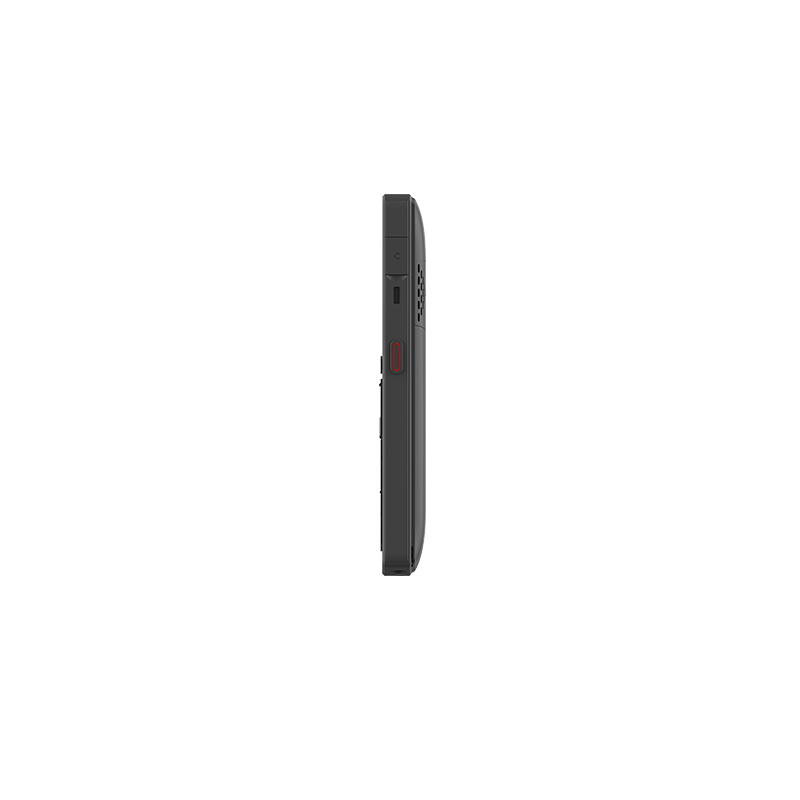

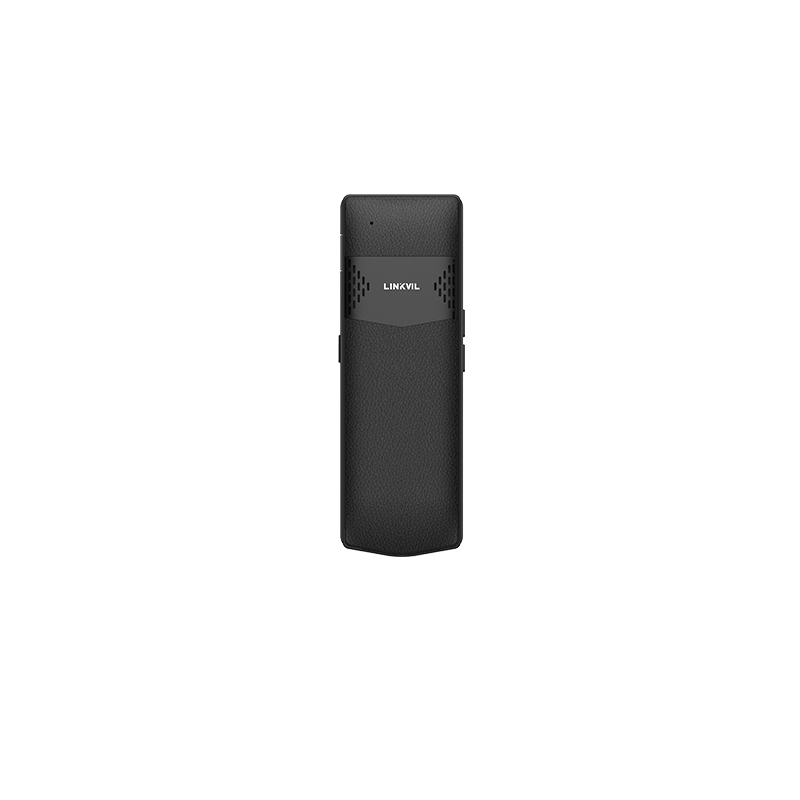

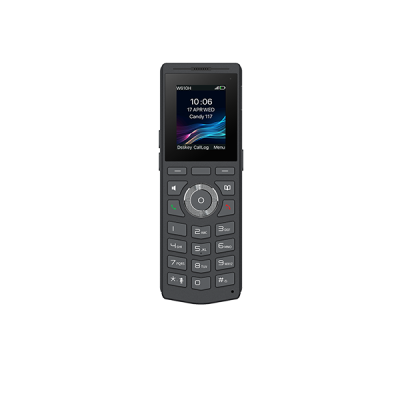

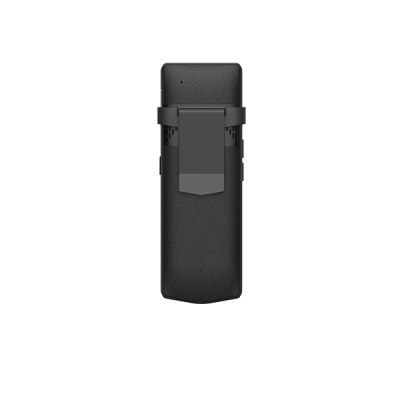

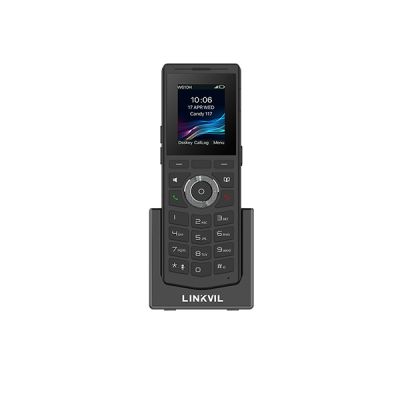

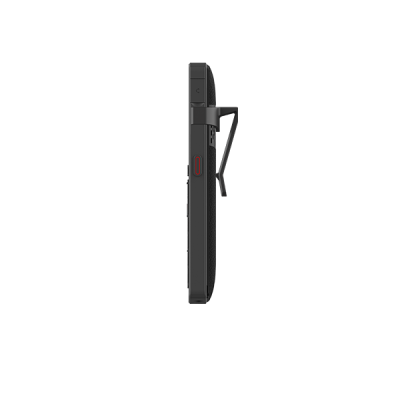

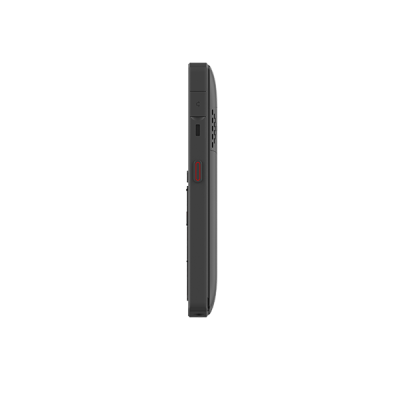

The companion handset, like the Fanvil W610H, is built for mobility and durability:
Display: Features a 2.0-inch 240x320 color screen.
Audio: Supports HD Voice quality and includes Noise Reduction technology.
Battery Life: Equipped with a large rechargeable battery (e.g., 1900mAh) offering up to 8 hours of talk time and 160 hours of standby time.
Connectivity: Includes built-in Bluetooth 5.0 for connecting headsets and a standard 3.5mm jack.
Functionality: Supports 4 SIP lines, custom DSS keys, and features like 3-way conference, caller ID, and a large local/remote phonebook.
The base station supports PoE (Power over Ethernet), allowing the device to receive power and data over a single Ethernet cable, which simplifies installation, particularly in ceiling-mounted or remote locations. Security is maintained through standard encryption protocols like SRTP/TLS and network security features like WPA2-PSK and 802.1x authentication.
This Fanvil solution is primarily aimed at businesses requiring a highly flexible, reliable, and scalable cordless IP telephony system.
